Dataloader is Blocking

Lessons learned for using Dataloader for donwstream service calls

  • GraphQL
  • Elixir
  • Backend

In short, the learning for me is

  • Although Dataloader resolver requires async callback, it is blocking in execution.
  • Dataloader is bestly used in the scenarios where IOs are quick
  • When the query is CPU intensive, use Async to signficantly reduce the latency.

Background

GraphQL Library in Elixir

Here’s a simple GraphQL schema definition

object :game do
  field :teams, list_of(:team) do
    resolve fn game, _args, _ctx ->
      # Query the details of the teams
      teams = io_request_teams(game.team_ids)
      {:ok, teams}
    end
  end
  field :start_time, :datetime
end

object :team do
  field :name, :string
  field :standing, :string
end

query do
  field :games_query, list_of(:game) do
    arg :date, non_null(:datetime)
    resolve fn %{date: date}, _ ->
      # Returns the games in this certain date
      games = io_request_games(date)
      {:ok, games}
    end
  end
end

Dataloader in Absinthe

Did you notice the problem in the example above?

It can do N+1 query.

So there’s the pattern called dataloader designed to solve this problem.

object :game do
  field :teams, list_of(:team) do
    resolve fn game, _args, %{loader: loader} = _ctx ->
      # Query the details of the teams
      ## Instead of blocking IO:
      ## teams = io_request_teams(game.team_ids)
      ## {:ok, teams}

      ## Perform the load and read in an async callback fasion
      loader
      |> Dataloader.load(MyDataloader, :load_teams_by_game, game.id)
      |> on_load(fn loader ->
        teams = Dataloader.get(MyDataloader, :loader_name, :load_teams_by_game, game.id)

        {:ok, teams}
      )
  end
end

In another place, we need to define the function to handle load_teams_by_game. Here for simplicity, I am going to use the Dataloader.KV.

@spec load_teams_by_game(:load_teams_by_game, MapSet.t()) :: map()
def load_teams_by_game(:load_teams_by_game, mapset_games) do
  # Here, the mapset_games are the deduplicated games passed in by `Dataloader.load()`

  team_ids = mapset_games |> Enum.map(& &1.team_ids) |> List.flatten()
  teams = io_bulk_fetch_teams(team_ids)
  teams_by_game_id = Map.new(
    mapset_games,
    fn game -> {
      game,
      Enum.map(game.team_ids, & Map.get(teams, &1)) |> Enum.reject(&is_nil/1)
    }
  )

  teams_by_game_id
end

Absinthe Resolution Model

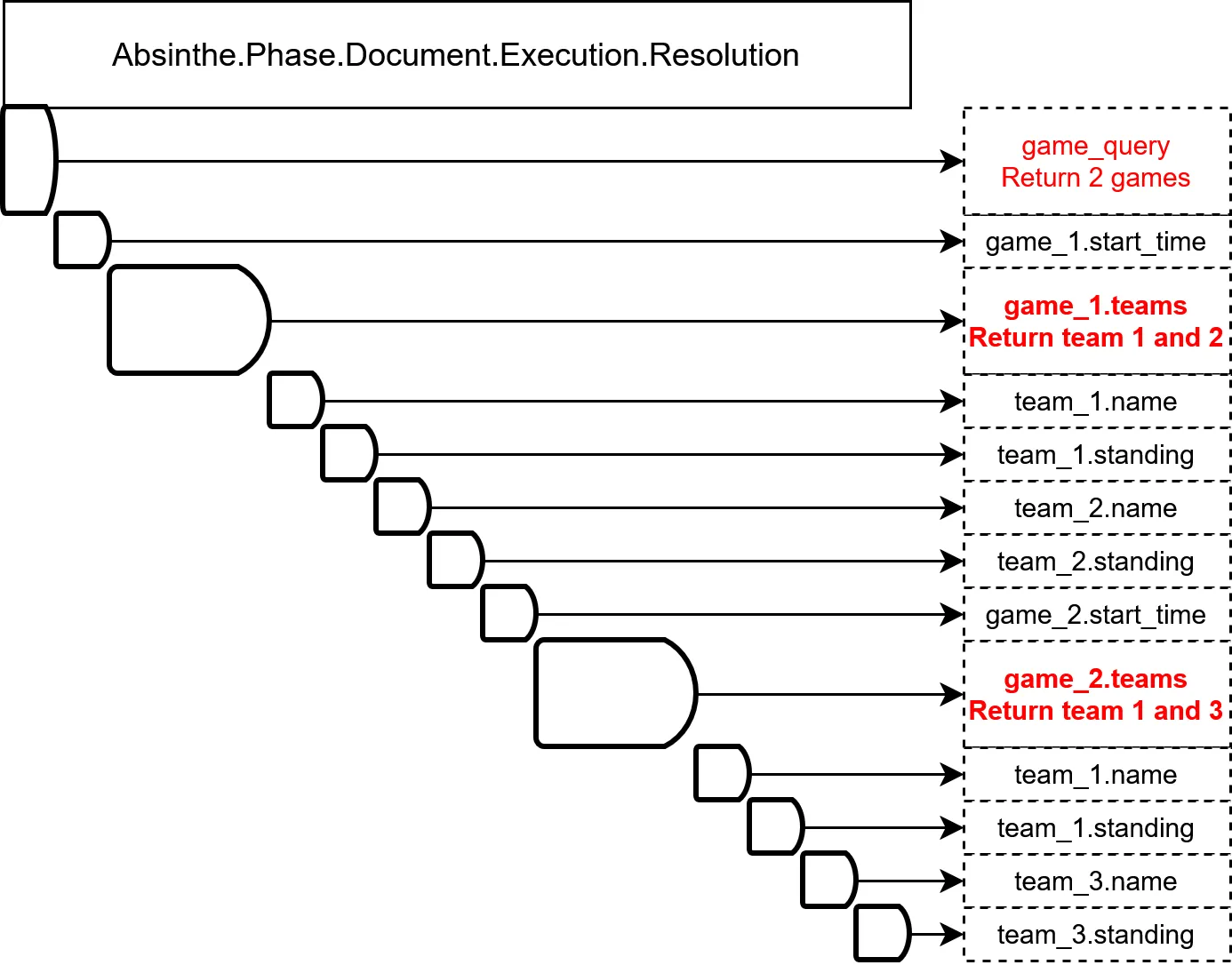

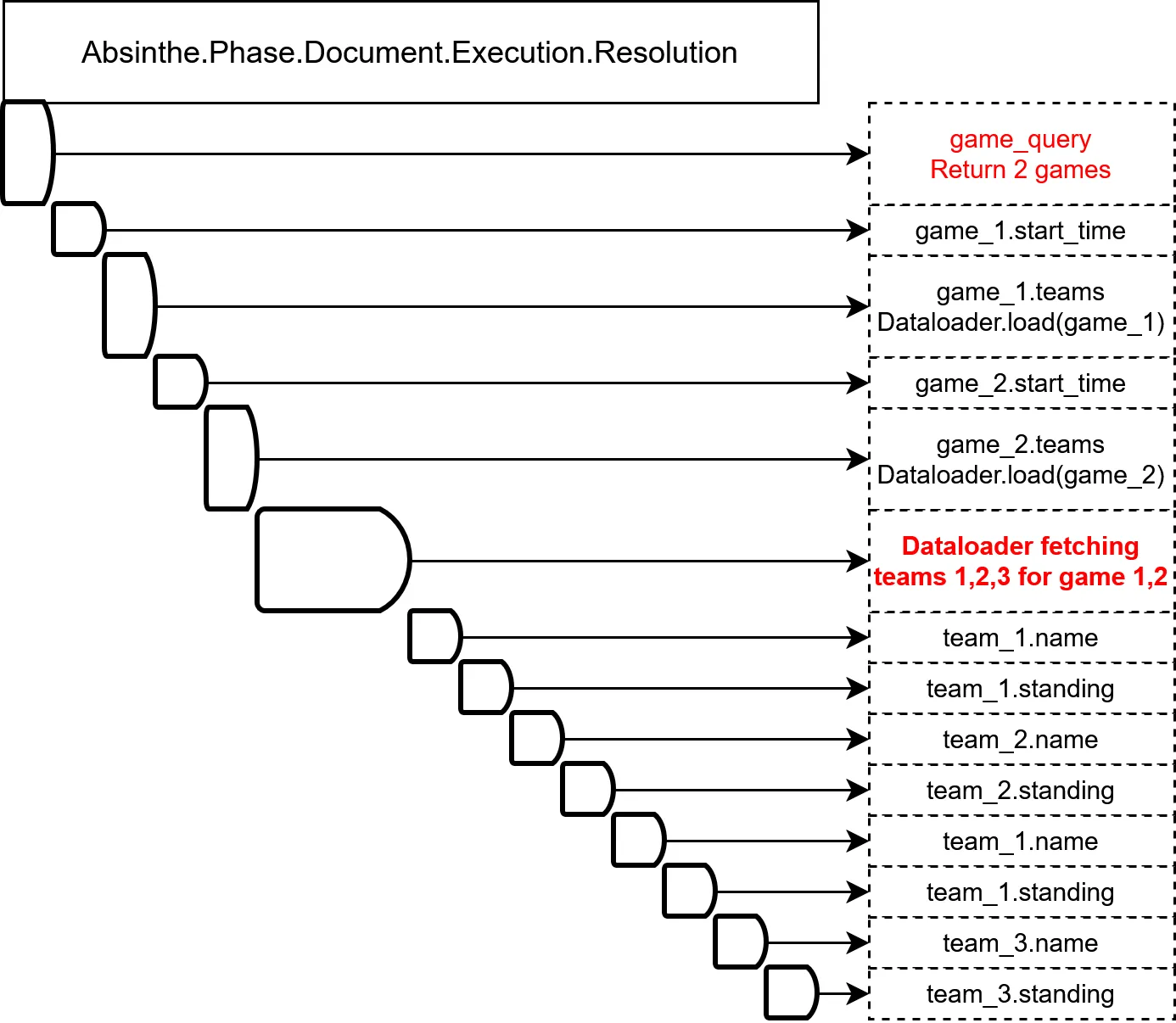

Here are two graphs illustrating the order of the resolvers in Absinthe resolution model. The left one is without Dataloader, the right one is with Dataloader.

Left image Right image
Without Dataloader Dataloaded Teams

In all cases, the resolvers are evaluated sequentially inside the request thread. So if the resolver includes IO operations, such as database, redis, or another service, those IO operations are blocking. For example, if there’s 10 fields inside an object, only 1 is IO blocking. If this blocking field is resolved first, then even though the rest 9 fields are ready to be resolved, the CPU must wait until the first field finishes.

In the Dataloader example, when the Game.teams field is encountered, the resolver returns immediately but this field is marked as suspended, and Absinthe continues to resolve other fields. After all regular fields are finished, Absinthe allows Dataloader to run any pending queries, which includes this load_teams_by_game for team 1,2,3 of game 1,2.

Important: During the Dataloader’s IO operation, Absinthe Resolution thread waits on the Dataloader’s tasks. Dataloader is BLOCKING.

This makes sense because absinthe already resolved those regular fields, at this time, there’s no work available.

Absinthe Async Middleware

https://hexdocs.pm/absinthe/Absinthe.Middleware.Async.html

object :game do
  field :teams, list_of(:team) do
    resolve fn game, _args, _ctx ->
      # Wrap the code inside an async task
      task = Task.async(fn ->
        teams = io_request_teams(game.team_ids)
        {:ok, teams}
      )

      {:middleware, Elixir.Absinthe.Middleware.Async, task}
  end
end

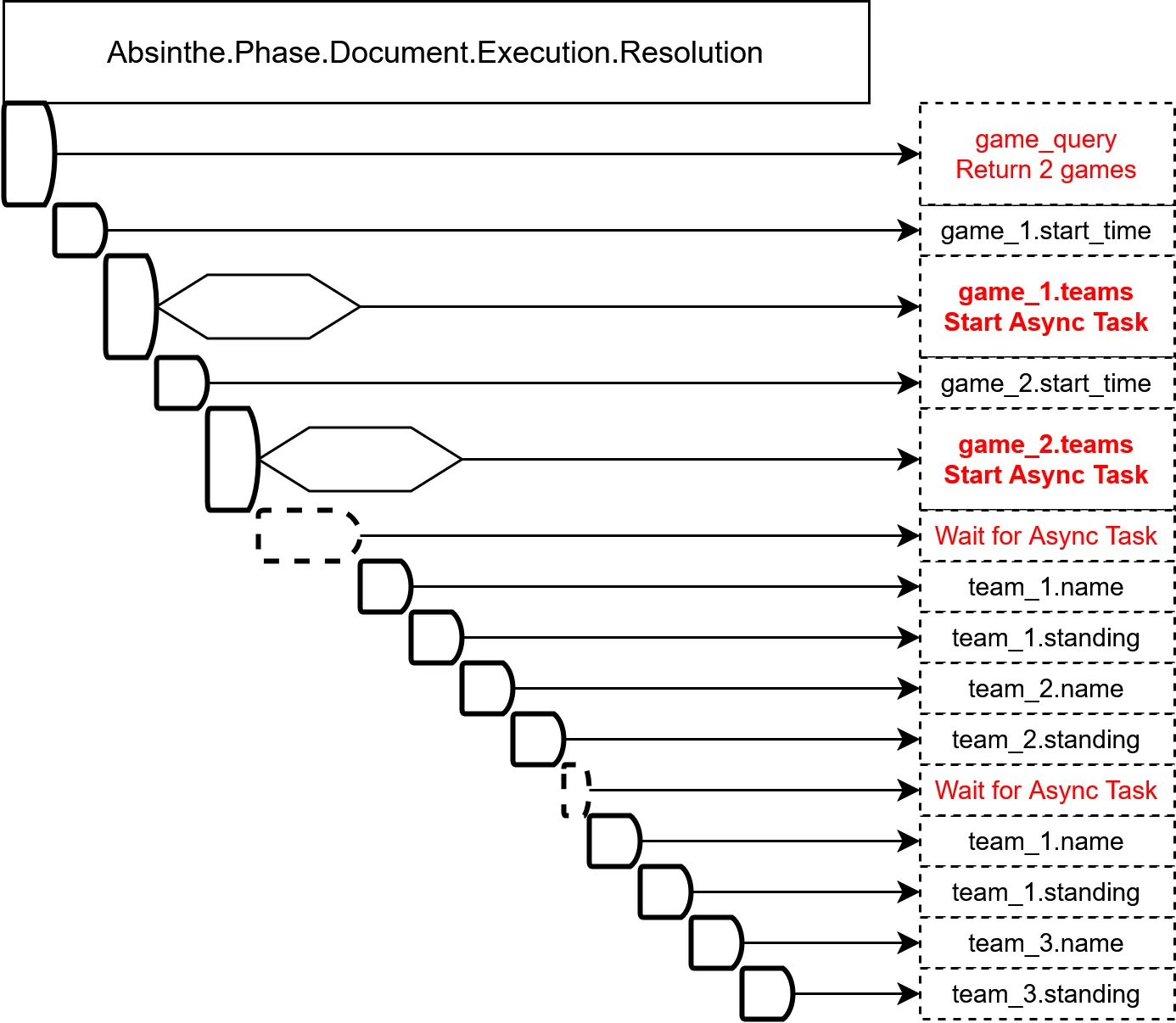

This is real nonblocking IO. Here’s the execution timing graph (compared to dataloader)

Left image Right image
Async Dataloader

This is real async because while the IO task for game1.teams is executing, the Absinthe resolution thread can resolve the rest of fields (game2.start_time and game2.teams) in parallel.

Discussion

I would like to do thought experiment in a few cases to see the comparison between async and dataloader.

Scenario 1: Single Layer Database

Suppose the GraphQL Object is this

games {
  teams   # read from database
  scores  # read from database
  season  # read from database
}

Dataloader (Suppose each db read is 5ms): I didn’t mention previously, but all dataloader functions are executed in parallel when the Absinthe Execution Thread is waiting for all of them. So the SQL for teams, scores, and seasons will be executed in parallel. So the total blocking time is 5ms. Having non-IO fields in games won’t change this result.

Async (Suppose each db read is 3ms): The total blocking time is 3ms. In approximation, all of the db reads are issued at the same time, and finish around the same time. The downside is that $3 * games$ queries are issued. If there are some other non-IO fields in games, then those execution time can overlap with the 3ms, and even reduce the blocking time.

Scenario 2: Remote Service

Suppose the fields are served by a remote service which is more expensive to call

games {
  teams   # remote service
  scores  # remote service
}

Dataloader (Suppose the batched request takes $3 * games + 20$ ms): Similar to Scenario 1, the total blocking time is $3 * games + 20$ ms.

Async (Each request takes 23ms): Similar to Scenario 1, the total blocking time is only 23ms and need to minus any additional non-IO fields in games.

Scenario 3: Blended Duration

games {
  teams   # 3 * games + 20ms
  scores  # constant 5ms
  static_field_1    # only CPU is needed, 0.5ms
  ...
  static_field_20   # only CPU is needed
}

Dataloader: The total blocking time is $3 * games + 25$ ms.

Async: The total blocking time is $23 + 5 - 10 = 18$ ms in the ideal case.

Conclusion

Dataloader has an almost constant blocking duration (regardless of the number of games), however, this duration is almost always beaten by Async, because of those CPU-only fields under the same parent. The more CPU-only fields, the more parallelization Async achieves. So when the query is CPU intensive, use Async to signficantly reduce the latency.

On the other hand, Dataloader solves N+1 query problem (just as its original purpose). However, because Dataloader is at its core BLOCKING, it is bestly used in the Database Scenario where IOs are so quick that having blocking IO isn’t a real issue.

One importantly learning for me is this:

Although Dataloader resolver requires async callback, it is blocking in execution.

Random Thoughts

Is it possible to combine the merits of Dataloader and Async?

This is a naive thought. Because batching needs the information about the entire set of ids, so IO can only happen when the resolvers for all those batching fields are executed. However, without running the resolver on CPU and look at the result, there’s no method to predetermine if this resolver needs a batched query.

What if Absinthe resolves the query with BFS instead of DFS?

Suppose the query is

games {
  CPU_field_1
  CPU_field_2
  CPU_field_3
  IO_field_1
  IO_field_2
}

If we have 5 games object, currently Absinthe will resolve object by object in DFS.

With BFS, we can resolve the IO_field_1 of all object, kick start the Dataloader, let it run in the background, and resolve the IO_field_2 of all object, start another Dataloader task. And then resolve those CPU fields. After that, wait until the IO is finished, then do the callbacks.

In addition to BFS execution, Absinthe also needs the programmer to manually mark which are the IO fields, so that they are resolved before the CPU fields to maximize parallelization.

Just a naive thought, any discussion is welcome to my email!!!
